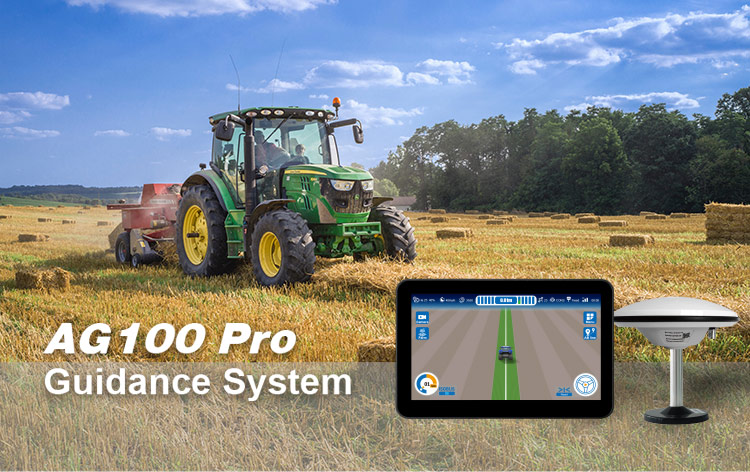

Introduction
AG100 Pro
Tractor Guidance
The SunNav AG100Pro is the ultimate high-accuracy guidance solution designed for modern agriculture. This comprehensive kit features a professional GNSS smart antenna, a rugged large-format display, and intuitive guidance software. Engineered to be robust yet affordable, the AG100Pro enables farmers to perform complex tasks with ease, extend operating hours into the night, and significantly boost farm productivity.
Function

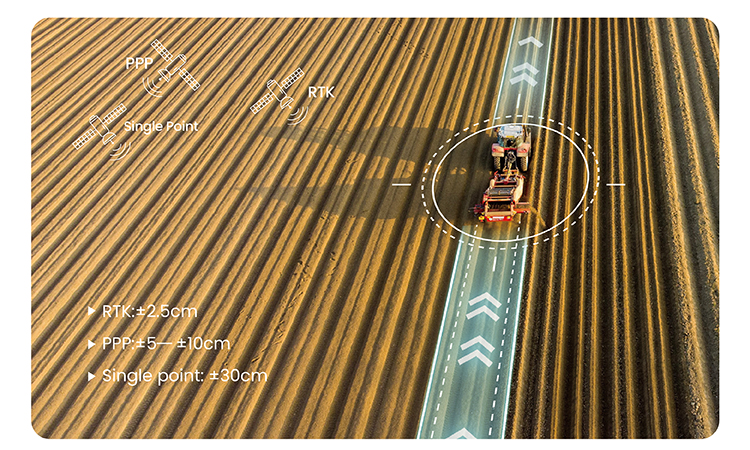

Multiple free location services
RTK:±2.5cm
Ntrip Cors: ±2.5cm
Free PPP:±5 ±10cm
Free Single point: ±30cm
Ditch the complicated setup
AG100pro Manual Guidance System boasts effortless installation with intuitive on-screen guidance. Simply connect your control tablet and antenna, then you’re ready to go. No messy wires, just a streamlined experience.

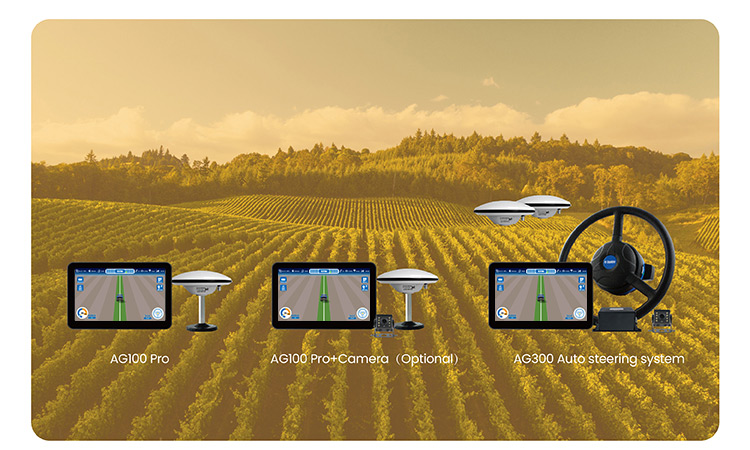

Upgradable
Select Your Ideal Configuration
Compatible
Compatible with more than 95% of tractor brands. harvesters,rice transplanters,seeders, and other agricultural implements

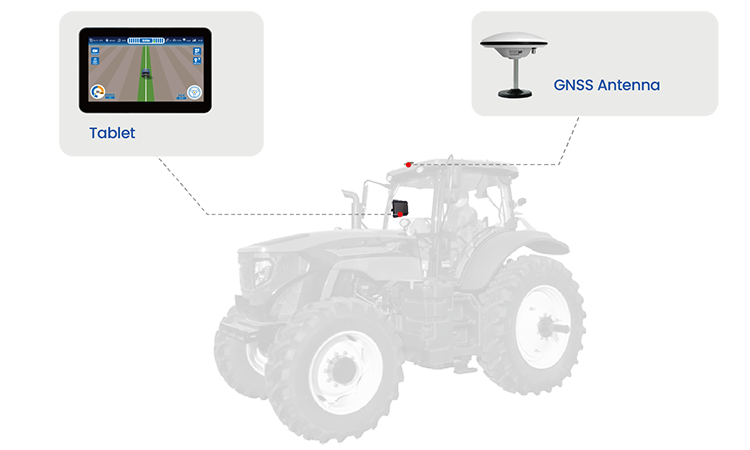

System components
CONTROL TABLET
System
0perating System: Android 10.0
LCD:10.1"Capacitive Touch Screen
Wi-Fi:2.4GHz IEEE 802.11 b/g/n
Bluetooth:V4.0
Serial Port: RS232 x2, RS485 x1
CAN Port: CANx2
(J1939, CANOpen, ISO15765)
Physical
Dustproof&Waterproof:lP-65
Dimension:281mmx181mmx42mm
Weight: 1.5kg
GNSS Antenna
BDS B1I/B2I/B3I GPS L1/L2/L5
GLONASS G1/G2 QZSS L1/L2/L5
Galileo E1/ E5a/E5b
Camera
(optional)
Pixel: 720P Support reversing image
Applications
Plowing
Ridging
Seeding
Harvesting
Spraying
FAQ
The AG100Pro is designed for “Plug-and-Play” simplicity. With our 3-Click Navigation logic and large, intuitive icons, most operators can begin field guidance within minutes of installation. No extensive technical training is required.
Yes. One of the AG100Pro’s greatest advantages is its portability. The entire system—including the 10.1-inch display and GNSS antenna—can be uninstalled and moved from a tractor to a sprayer or harvester in under 10 minutes.
RTK Mode: By connecting to a CORS network or a local Radio Base Station, you achieve 2.5cm ultra-high precision, ideal for high-value crops and planting.
PPP (Precise Point Positioning) Mode: This mode provides 5-10cm accuracy using satellite corrections alone. It is perfect for broad-acre applications like spraying or tillage where a base station or CORS network is unavailable.
The professional GNSS receiver is multi-constellation, supporting GPS, GLONASS, BeiDou, and Galileo. This ensures a stable and reliable signal even near treelines or in remote geographical areas.
By providing high-precision guidance lines and real-time coverage mapping, the system eliminates “skips” and “overlaps.” This precision directly reduces the over-application of fuel, fertilizer, and chemicals, often paying for the system within a few seasons through input savings.
Absolutely. The high-brightness 10.1-inch touchscreen and precision GPS allow you to operate with full confidence in low visibility, fog, or total darkness, effectively extending your working hours during busy seasons.
Yes, the AG100Pro is built for the farm. The display and antenna are robust and shockproof, designed to handle the dust, moisture, and high vibrations common in agricultural environments.
We aim to keep your farm productive. Please contact your local SunNav dealer or our support team for information regarding the latest software versions and feature enhancements.
